Generated Offline Reports

Generated offline reports are PowerPoint documents that you can create from Sigrid to share insights about your portfolio or system’s quality. These reports enable stakeholders to consume quality information through traditional reporting channels, integrate Sigrid insights into existing reporting cycles, and access information that may not yet be available in the Sigrid interface.

Reports can focus on snapshot information (current state), changes across a time period, or process and metadata insights. All generated reports are PowerPoint documents that can be easily shared and archived offline.

Report types and focuses

Different types of generated reports are available, each with a specific focus:

Portfolio-level reports

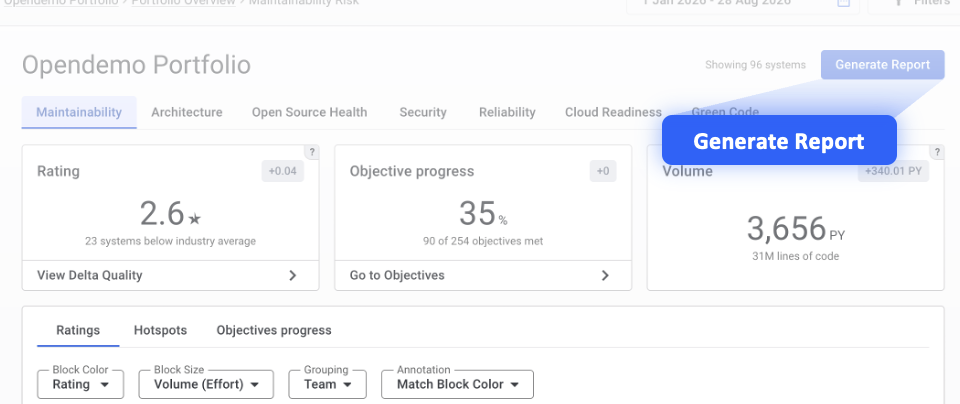

To generate a portfolio-level report, navigate to the Portfolio Overview and click the “Generate Report” button in the top right corner.

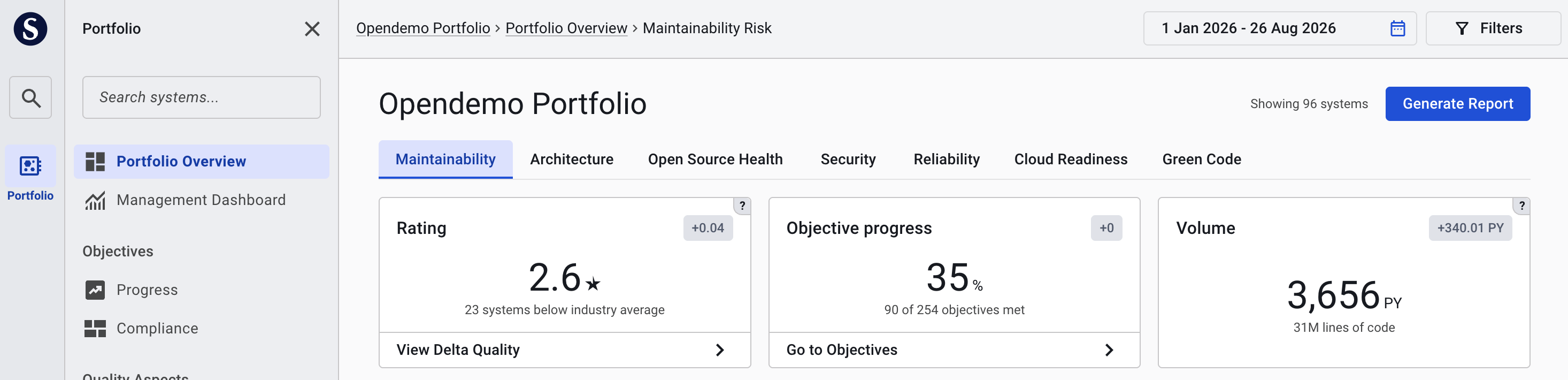

Generate Report button on Portfolio Overview page

System-level reports

To generate a system-level report, navigate to the System Overview and click the “Generate Report” button in the top right corner.

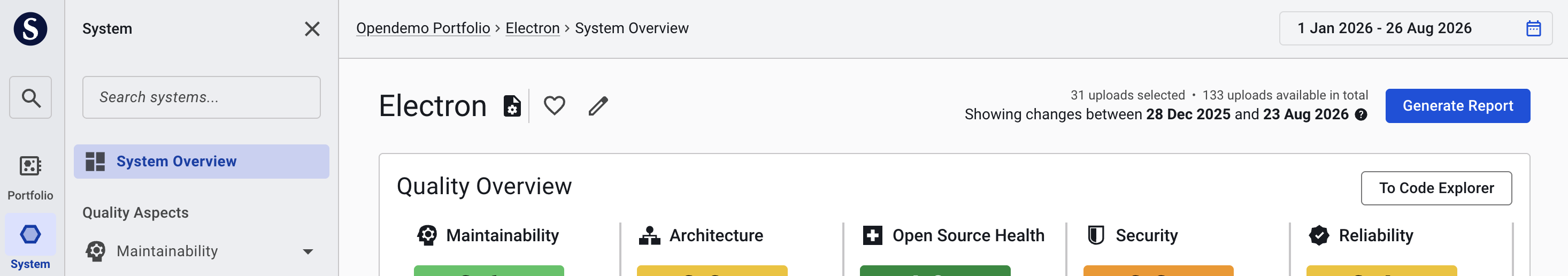

Generate Report button on System Overview page

Generating a report

When you click the “Generate Report” button, a dialog opens showing the available report types for your current scope:

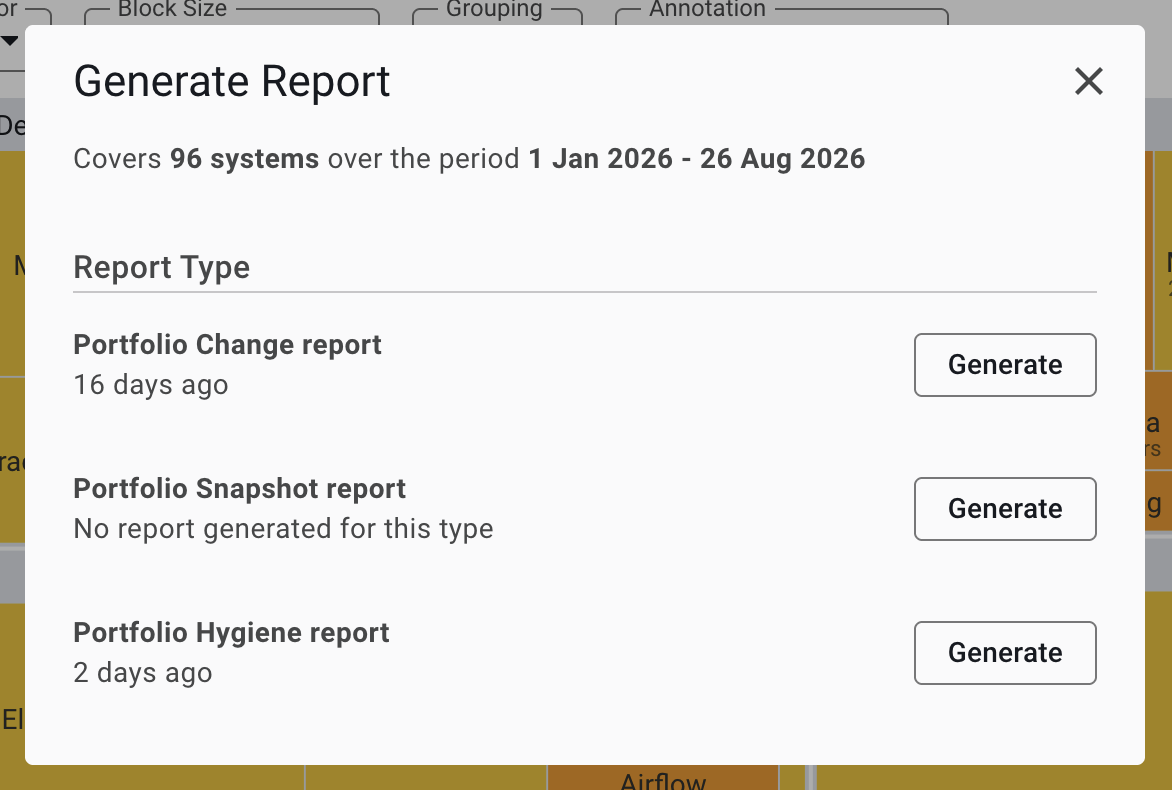

Generate Report dialog showing available report types and last generation times

Note: Report types may be updated over time. The report types and focuses shown in your Sigrid instance may differ from the examples in this documentation.

The dialog displays:

After you click the “Generate” button, report generation begins. Processing may take some time depending on the report complexity and current processing queue. If you don’t want to perform any other actions in Sigrid, you can close Sigrid after you have clicked the “Generate” button.

Once your report is ready, you will receive an email with a download link. Click the link to open the download page. The download page for the generated report is only accessible to the user who initiated the report generation.

Report download links do not currently have an expiration date, but this may change in the future. If you need to retain reports for long-term use, we recommend archiving them offline after downloading.
